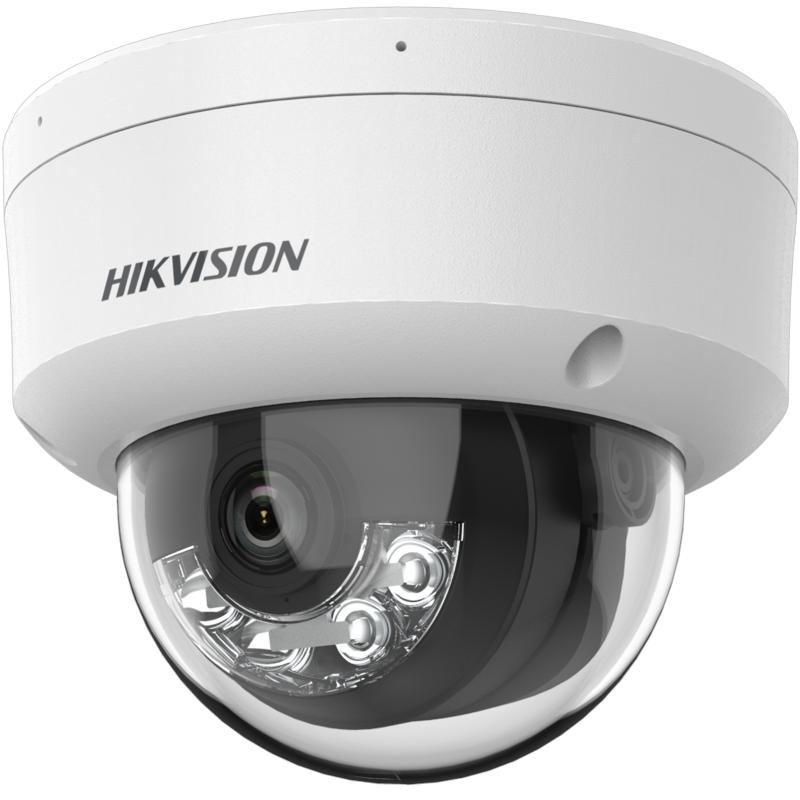

HIKVISION DS-2CD1121G2-LIUF 1/2.9" PS CMOS 2MP 2.8mm Smart Hybrid Light POE Sesli Dome IP Güvenlik Kamera

Image Sensor : 1/2.9" Progressive Scan CMOS

Max. Resolution : 1920 × 1080

Shutter Time : 1/3 s to 1/100,000 s

Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Day & Night : IR cut filter

Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens Type : Fixed focal lens, 2.8 mm

Focal Length & FOV : 2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°

Lens Mount : M12

Iris Type : Fixed

Aperture : F1.6

DORI : 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

Supplement Light Type : IR, White Light

Supplement Light Range : Up to 30 m

Smart Supplement Light : Yes

IR Wavelength : 850 nm

Main Stream :

Sub-Stream :

Video Compression :

Video Bit Rate : 32 Kbps to 8 Mbps

H.264 Type : Baseline Profile, Main Profile, High Profile

H.265 Type : Main Profile

Bit Rate Control : CBR, VBR

Region of Interest (ROI) : 1 fixed region for main stream

Audio Type : Mono sound

Environment Noise Filtering : Yes

Audio Sampling Rate : 8 kHz/16 kHz

Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate :

Security : Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE

Simultaneous Live View : Up to 6 channels

API :

Protocols :

User/Host :

Client : iVMS-4200, Hik-Connect

Web Browser :

Wide Dynamic Range (WDR) : Digital WDR

SNR : ? 52 dB

Day/Night Switch : Day, Night, Auto, Schedule

Image Enhancement : BLC, HLC, 3D DNR

Image Settings :

Privacy Mask : 4 programmable polygon privacy masks

Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone : Yes

Basic Event :

Linkage :

Power : 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 80

Material : Metal & Plastic

Dimension : Ø121.4 mm × 97.7 mm (Ø4.8" × 3.8")

Package Dimension : 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight : Approx. 550 g (1.2 lb.)

With Package Weight : Approx. 800 g (1.8 lb.)

Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language : Polish

General Function : Heartbeat, anti-banding, mirror, password protection, password reset via email

EMC :

Safety :

Environment :

Protection : IP67: IEC 60529-2013, IK08: IEC 62262:2002
